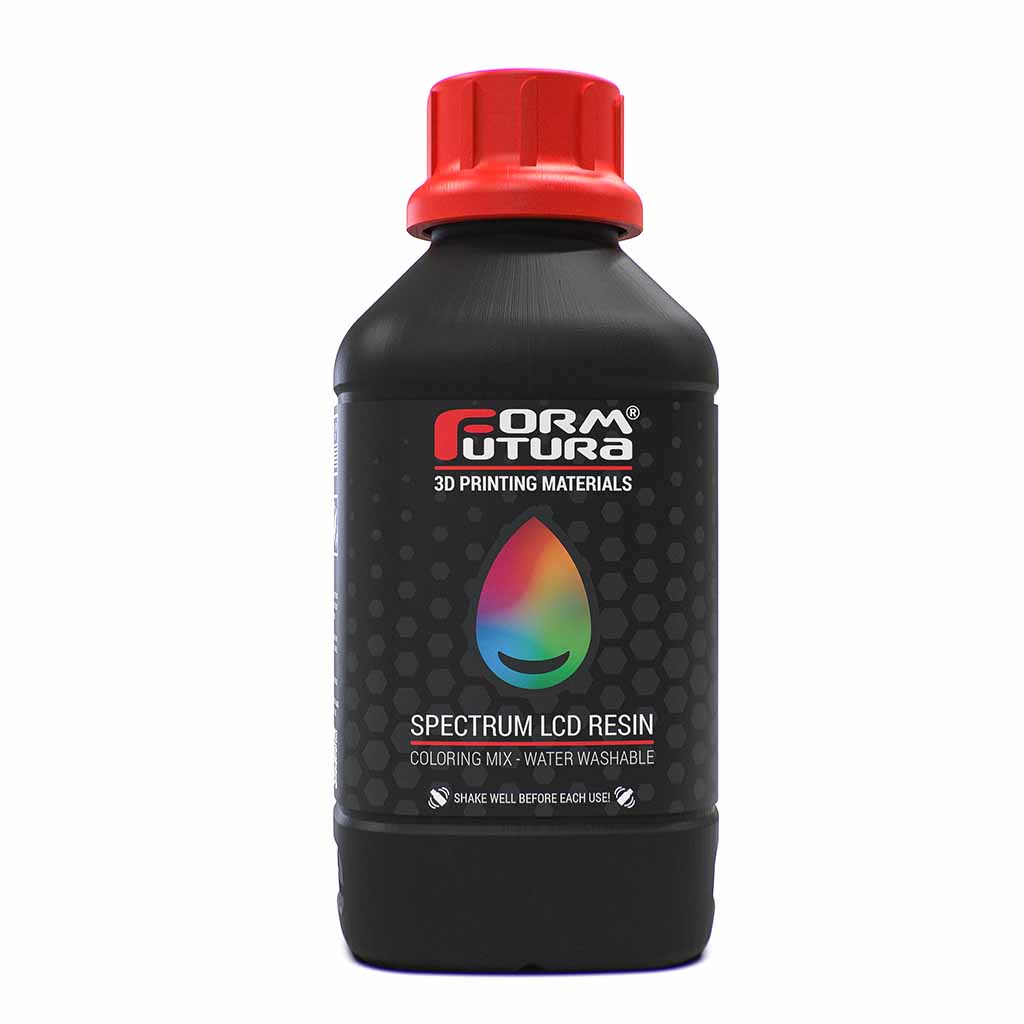

Spectrum LCD Color Mix - Water Washable Resin

Our Spectrum LCD Color Mix – Water Washable Resin is a high-quality 3D printing resin. Using this resin allows you to clean prints with water. The Spectrum resins can be mixed with our  Spectrum Color Pigments to obtain a wide variety of true RAL colors. You can even fine-tune your own colors by mixing pigments into a new color.

Important key features:

• Clean prints by simply using water.
• Very safe, simple and fast removal process of uncured resin.
• Available in an impressive range of 29 opaque RAL colors.
• Good compatibility with all SLA, DLP and LCD / MSLA 3D printers in the range of 385 – 420nm.

Suitable applications

• Suitable for the production of figurines, miniatures and models.
• Suitable for 3D printing functional prototypes.
• Suitable for 3D printing end-use products.

Print Settings

The print settings below are for the resin without any pigments added, please see the Spectrum Pigment Page for all settings for all colors.

Phrozen Sonic Mini 4K

50µm

First / Burn-in Layers: 4x to 6x for 40 Seconds

Normal Layers: 4 to 5 Seconds

Anycubic Photon

50µm

First / Burn-in Layers: 4x to 6x for 55 to 65 Seconds

Normal Layers: 11 to 13 Seconds

Light-off Delay: 1

Bottom Light-off Delay: 1

Anycubic Photon Mono SE

50µm

First / Burn-in Layers: 4x to 6x for 40 to 45 Seconds

Normal Layers: 4 to 5 Seconds

Lifting Distance: 6mm

Light-off Delay: 0.5

Bottom Light-off Delay: 1

Anycubic Photon Mono X

50µm

First / Burn-in Layers: 4x to 6x for 45 Seconds

Normal Layers: 4 to 4.5 Seconds

Lifting Distance: 8mm

Light-off Delay: 1

Bottom Light-off Delay: 1

UV Power: 80%

Elegoo Mars 2 Pro

50µm

First / Burn-in Layers: 4x to 6x for 45 Seconds

Normal Layers: 4.5 to 5 Seconds

Lifting Distance: 6mm

Light-off Delay: 0.5

Bottom Light-off Delay: 1

*If you need the best settings for your 3d printer we highly recommend using the included RERF (Resin Exposure Range Finder) or Resin Exposure Calibration Tool.
