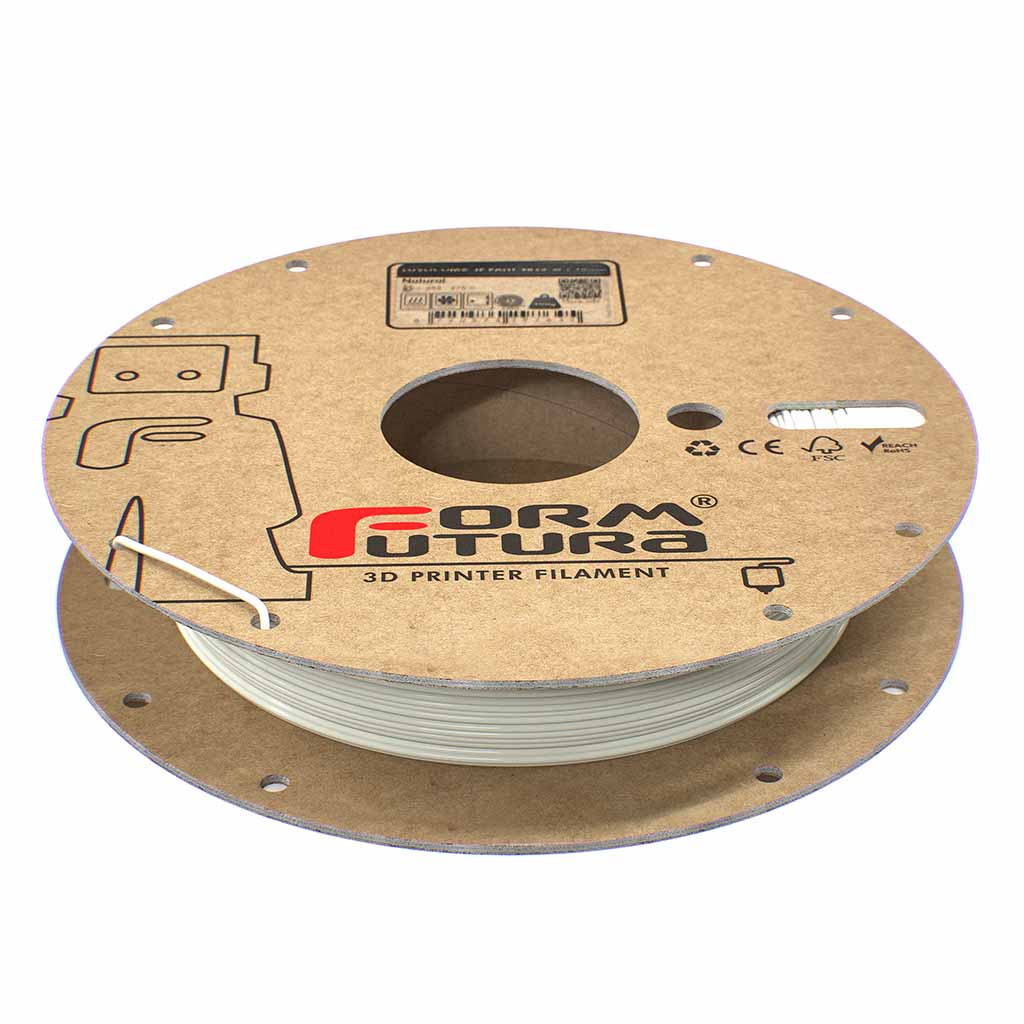

LUVOCOM 3F PAHT 9825
LUVOCOM 3F PAHT 9825 is a PA6 filament that is engineered for quality controlled 3D printing of end-use parts that require strength and toughness in combination with a high temperature resistance.
Name :
[PH98-175NTRL-00200] LUVOCOM 3F PAHT 9825 (1.75mm, 200 gram)SKU :
PH98-175NTRL-00200EAN :
8720574297645Luvocom 3F PAHT 9825 NT is a high-temperature resistant PA6 (polyamide) filament which has been engineered for industrial applications. This 3D printing filament exhibits the strength and toughness of pure PA6 nylon without sacrificing any of its printability. This makes Luvocom 3F PAHT 9825 NT a perfect filament for 3D printing functional prototypes and end-use parts. It exhibits an extremely high dimensional accuracy.
Key features
- Lehvoss Luvocom 3F PAHT 9825 NT inside
- Unreinforced PA6 filament with high strength and toughness
- Temperature resistant up to 160 °C (200h)
- 50% reduced water uptake at a four times slower rate compared to other PA6 filaments
- Tensile strength up to 85 MPa
- 3D prints with high dimensional accuracy and increased layer adhesion
- Good electrical properties
Applications
- Dynamically-stressed parts
- Functional prototypes
- Jigs, tools, and fixtures
- End-use parts
General printing guidelines *
| Nozzle size: ≥ 0.4mm | Layer height: ≥ 0.10mm | Experience level: Expert |
| Print temp: ± 255 – 275° C | Fan speed: 0 – 25% | Drying: 4h @100°C or 12h @70°C |
| Heat bed: ± 60 – 70° C | Enclosure needed: No | Adhesion: EasyFix Nr. VI |
*) Above displayed settings are meant as guidance to find your optimal print settings. These ranges in settings should work for most printers, but please do feel free to experiment outside these parameters if you think it is suitable for your printer. There are a lot of different type of printers, hot-ends and printer offset that it is extremely difficult to give an overall one-size-fits-all setting.
Filament length
| ρ: 1.20 g/cc | 0.2 Kg spool | 0.5 Kg spool | |||
| Ø 1.75mm | ± 69m | ± 173m | |||
| Ø 2.85mm | ± 26m | ± 65m |
Product export information
| HS Code: 39169090 | Description: Monofilament | Country of origin: the Netherlands |
Compliance *
This filament is compliant to below-listed directives and regulations.
- RoHS directive 2011/65/EC
- REACH directive 1907/2006/EC
*) This declaration of conformity to directives and regulations is prepared according to our present standard of knowledge and may be amended if new cognitions are available and applies only for the above-described products.
