AthenaX GF10

https://www.formfutura.com/web/image/product.template/15101/image_1920?unique=454654e

Polyethylene Terephthalate-Glycol engineering filament with 10% additional glass fiber. Exceptionally easy to 3D print on open desktop machines, no enclosure, or heated chamber needed.

€ 35,95 35.95 EUR € 33,02

€ 33,02

Not Available For Sale


  • Diameter
  • Color
  • Weight
  • Format
  • Color
  • Color
  • Weight
  • Weight
  • Weight
  • Format
  • Format

This combination does not exist.


Name :

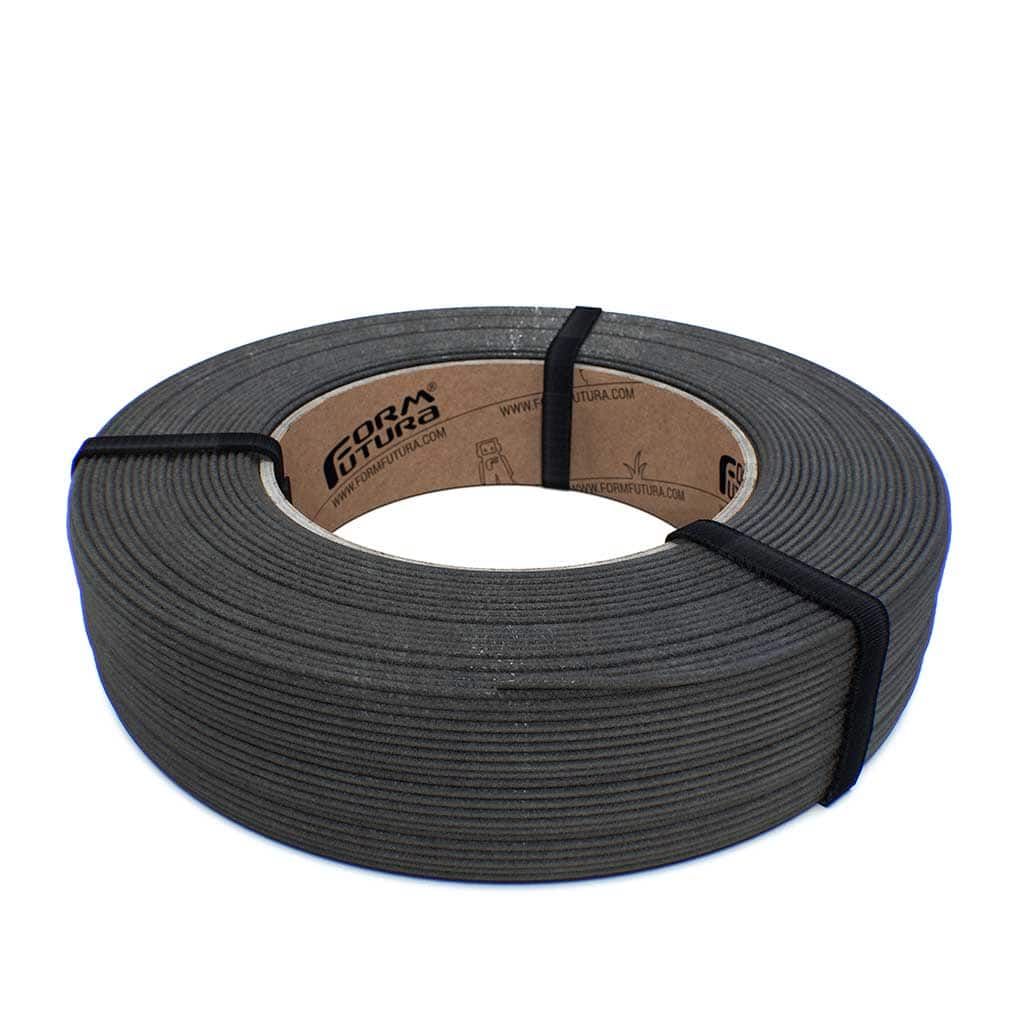

[ATGF-175BLCK-C0500] AthenaX GF10 (1.75mm, Black, 500 gram, ReFill Coil)
SKU :
ATGF-175BLCK-C0500
EAN :
8720629067919

AthenaX GF10 combines all benefits of our AthenaX filament plus 10% glass fibers. This glass fiber reinforcement has significant advantages. It offers not only great electrical- and thermal insulation properties. Your 3D printed parts will not only be stiff, strong and durable. They will also be resistant to wear and chemicals. In short, AthenaX GF10 is your go-to engineering filament. Even for the most demanding applications.

This engineering filament is very easy to 3D print on open desktop machines. No enclosure, or heated chamber needed. Its low shrinkage factor and perfect layer adhesion make AthenaX GF10 a breeze to print with. Both on desktop and large format 3D printers.



Important key features

  • HPCTG + 10% glass fibers.
  • HDT of 78°C / VICAT of 77°C.
  • Great electrical- and thermal insulation specs.
  • Durable and good resistance to corrosion.
  • High stiffness and tensile strength.



Suitable applications

  • Manufacturing safety devices.
  • Housings and covers.
  • 3D printing electrical safety components.
  • Small-scale production
  • Making tooling and manufacturing aids.



General printing guidelines *

Nozzle size: ≥ 0.4mmLayer height: ≥ 0.1mmEnclosure: Recommended
Print temp: ± 250 – 290°CHeat bed: ± 85 – 100° CFan speed: 0-100%

Thermal properties

HDT (@0.455MPa) 78°C ISO 75

HDT (@ 1.820 Mpa) 68°C ISO 75

Vicat softening temperature 77°C DSC



Pre-drying AthenaX GF10

AthenaX is a PCTG based filament. PCTG is moderately hygroscopic and therefore it is recommended to pre-dry the filament at 75°C for approximately 24 hours before usage for optimal results. You will get the most out of the material properties with pre-dried filaments. For optimal print results we recommend to print AthenaX filament from a drying box to avoid that the material can accumulate humidity from the environment.



Storage and handling

Filament should be stored at room temperature in a dry and dark place with humidity below 15%. Recommended storage temperature is ca. 18-25°C (64.4 -77.0°F). Keep out of moisture, sunlight and direct heat. When stored properly, product has a shelf life of 24 months. To obtain the best parameters of the printed object, it is recommended to dry the material prior to usage and to 3D print it directly from a dry box.



Product export information

HS Code: 39169090Description: Monofilament for 3D printingOrigin: European Union
