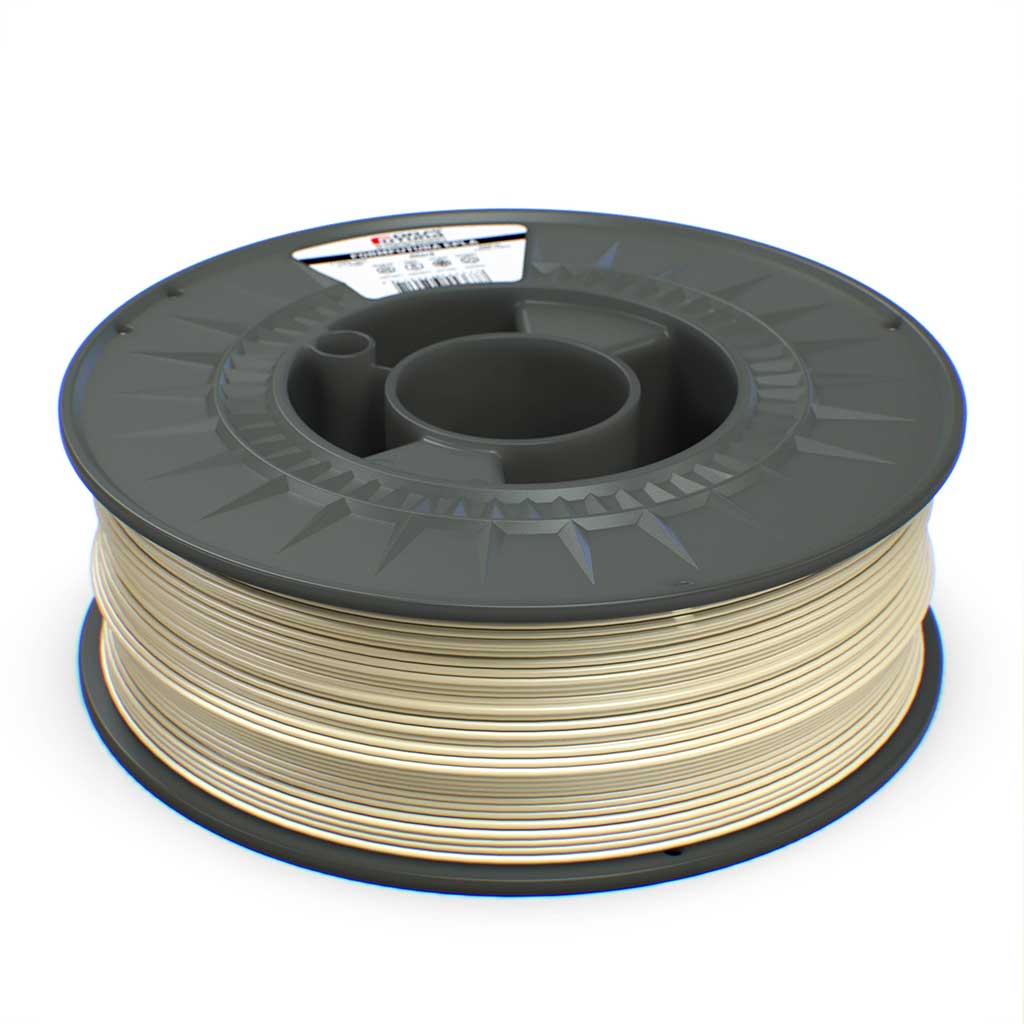

Premium ABS Medical
High-performance ABS filament designed for medical applications, offering strength, durability, and consistent print quality.
Name :
[ABSM-175NTRL-01000] Premium ABS MedicalSKU :
ABSM-175NTRL-01000EAN :
8720847068552FormFutura Premium ABS Medical is a high-performance, medical-grade ABS filament. It is developed specifically for professional medical 3D printing applications. This filament combines excellent mechanical performance with strict regulatory compliance, making it ideal for demanding medical environments.
Premium ABS Medical is biocompatible for up to 30 days of skin and body contact and complies with internationally recognized ISO 10993 biocompatibility standards as well as U.S. Pharmacopeia (USP) Class V requirements for plastics.
Medical Compliance & Certifications
FormFutura Premium ABS Medical complies with the following ISO 10993 biocompatibility standards and U.S. Pharmacopeia (USP) classes for plastics.
- ISO 10993-1, ISO 10993-3, ISO 10993-4, ISO 10993-5, ISO 10993-6, ISO 10993-11, ISO 10993-12.
- USP Class V.
In addition, this medical-grade ABS filament is food contact safe, complying with EU Regulation No. 10/2011 and FDA 21 CFR food contact regulations.
Optimized for Medical 3D Printing
FormFutura Premium ABS Medical is engineered for excellent printability and superior interlayer adhesion, which results in strong, reliable and dimensionally stable printed parts. This makes it an ideal filament for 3D printing lightweight, patient-specific prosthetics and patient-tailored rehabilitation solutions, where comfort, fit and performance are essential.
Important key features of Premium ABS Medical
- Medical-grade ABS filament that is biocompatible for up to 30 days in contact with the human body.
- Compliant with ISO 10993 standards and certified to USP Class V.
- Food contact safe (EU & FDA compliant.
- Compatible with all AMS systems.
-
EU-Made Premium Quality Filament spooled on recycled certified second-life PP spools.
Suitable applications for Premium ABS Medical
- Customized prosthetics and orthotics.
- Medical tools and aids.
- Functional medical prototypes.
-
Short-term medical devices.
- Rehabilitation support frames and assistive medical supports.
General printing guidelines *
| Nozzle size: ≥ 0.15mm | Layer height: ≥ 0.1mm | Adhesive: EasyFix Nr. I |
| Print temp: ± 235 – 260° C * | Fan speed: 0 – 25% | Experience level: Intermediate |
| Heat bed: ± 90 – 100° C * | Enclosure: Yes | Drying: 4 - 6 hours @ ~70-85°C |
*) Above displayed settings are meant as guidance to find your optimal print settings. These ranges in settings should work for most printers, but please do feel free to experiment outside these ranges if you think it is suitable for your printer. There are a lot of different type of printers, hot-ends and printer offsets that it is extremely difficult to give an overall one-size-fits-all setting.
*)When using high speed printing, the above displayed settings will likely need to be adjusted accordingly.
Specifications
Material properties
Specific Gravity
MFR (220°C, 10kg)
Mechanical properties
Yield strength
Tensile elongation at break
Tensile Modulus
Flexural Modulus
Izod notched impact strength (at 23°C)
Izod notched impact strength (at -30°C)
Thermal properties
Vicat softening temperature
Typical value
1.06 g/cm3
18 cm3/10
48 MPa
16%
2475MPa
2524MPa
14 KJ/m2
7 KJ/m2
96°C
Test Method
ISO 1183-1
ISO 1133
ISO 527
ISO 527
ISO 527
ISO 178
ISO 180
ISO 180
ISO 306
Storage and handling
Filament should be stored at room temperature in a dry and dark place with humidity below 15%. Recommended storage temperature is ca. 18-25°C (64.4 -77.0°F). Keep out of moisture, sunlight and direct heat. When stored properly, product has a shelf life of 24 months. To obtain the best parameters of the printed object, it is recommended to dry the material prior to usage and to 3D print it directly from a dry box.
Packaging & Logistics Information
Spool weight
1,000 g (1 kg)
2,300 g (2.3 kg)
4,500 g (4.5 kg)
8,000 g (8 kg)
Spools per master box
10
5
1
1
Spools per EURO pallet
400
120
90
60
Product export information
| HS Code: 39169090 | Description: Monofilament for 3D printing | Country of origin: European Union |
Disclaimer
The product and technical data provided in this datasheet are correct to the best of FormFutura BV’s knowledge and are intended solely for reference and comparison purposes. Actual values may vary depending on printing conditions, model complexity, environmental factors, and other variables. Typical values are indicative only and do not constitute binding specifications.
All other information supplied, including that contained herein, is believed to be accurate but is provided on the express condition that the customer is responsible for making its own assessment to determine the product’s suitability for a particular purpose.
FormFutura BV makes no warranties, express or implied, including but not limited to warranties of merchantability, fitness for a particular purpose, satisfactory quality, non-infringement of intellectual property, or any other matter, with respect to the information provided or the products described herein. No warranty shall be implied from the provision of such information or products, or from the results obtained from their use.
