LUVOCOM 3F PPS CF 9938 - FDM 'Metal' Printing

In this blog, we are taking a closer look at one of our most interesting materials to date: LUVOCOM 3F PPS CF 9938. We will explore the material characteristics, suitable applications and of course what sets this incredibly high-performing filament apart.

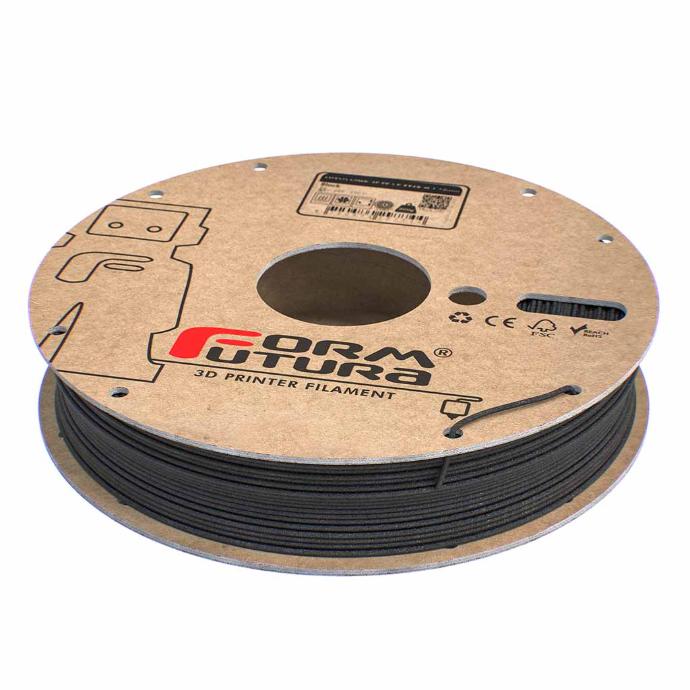

LUVOCOM 3F PPS CF 9938 - Black Spool

What makes this filament special?

When exploring technical filaments, it can often become quite overwhelming. From very specific product characteristics to deciphering the intended use cases, it can be quite a lot for most.

Here, we are take a look at a PPS (Polyphenylene sulfide) filament with 15% added carbon fibers.

This combination makes for a truly high performance filament with a metal-like look, feel and performance.



Key features of LUVOCOM 3F PPS CF 9938

  • Insoluble: no solvent or chemical is up to the task when dealing with this material.
  • Flame Retardant: with a UL-94 V-0 flame retardant rating, this material is used often in projects that require a high level of fire resistance.

  • Compliant with high caliber standards: with a compliance with  UN-ECE R.118.03,  EN 45545 and EN 45545 (fire behaviour of objects and materials in trains), this material is meant to be used in even the most challenging and demanding projects when it comes to FDM 3D Printing.
  • Texture: the combination of PPS and carbon fibers make for a metal-like texture, which even sounds like the real deal.
Shop Now

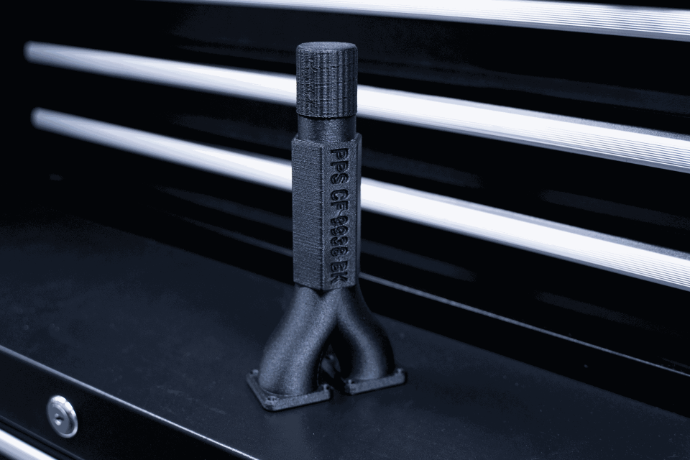

LUVOCOM 3F PPS CF 9938 3D printed part

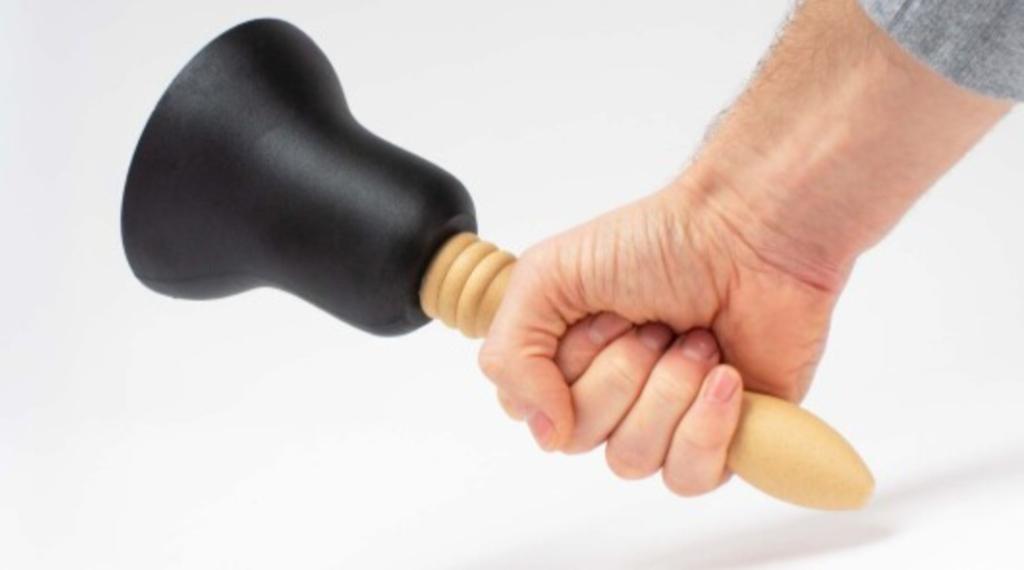

LUVOCOM 3F PPS CF 9938 3D printed handbell

Applications of LUVOCOM 3F PPS CF 9938

  • High performance end-use parts - Ideal for parts that require exceptional mechanical properties to push the performance of the object to the next level.
  • Replacement parts in vehicles - The perfect option for vehicle parts that require heat resistance, impressive strength and other mechanical properties
  • Electronics and electrical components - The ideal choice for components requiring the right resistances such as electrical parts.
  • Coatings and housings for chemicals - Outstanding resistances make this filament a no-brainer to use when requiring parts that are in contact with chemicals.

How to 3D Print with LUVOCOM 3F PPS CF 9938

To achieve the best results when printing with this material, it’s essential to follow the recommended print settings and preparation techniques.

General printing guidelines

ParameterRecommended Value
Nozzle Temp. ± 295– 345° C
Bed Temp. ± 100– 120° C
Drying period
4-6 hours at 80° C (max)
Cooling Fan speed0 - 25%
EnclosureRequired
