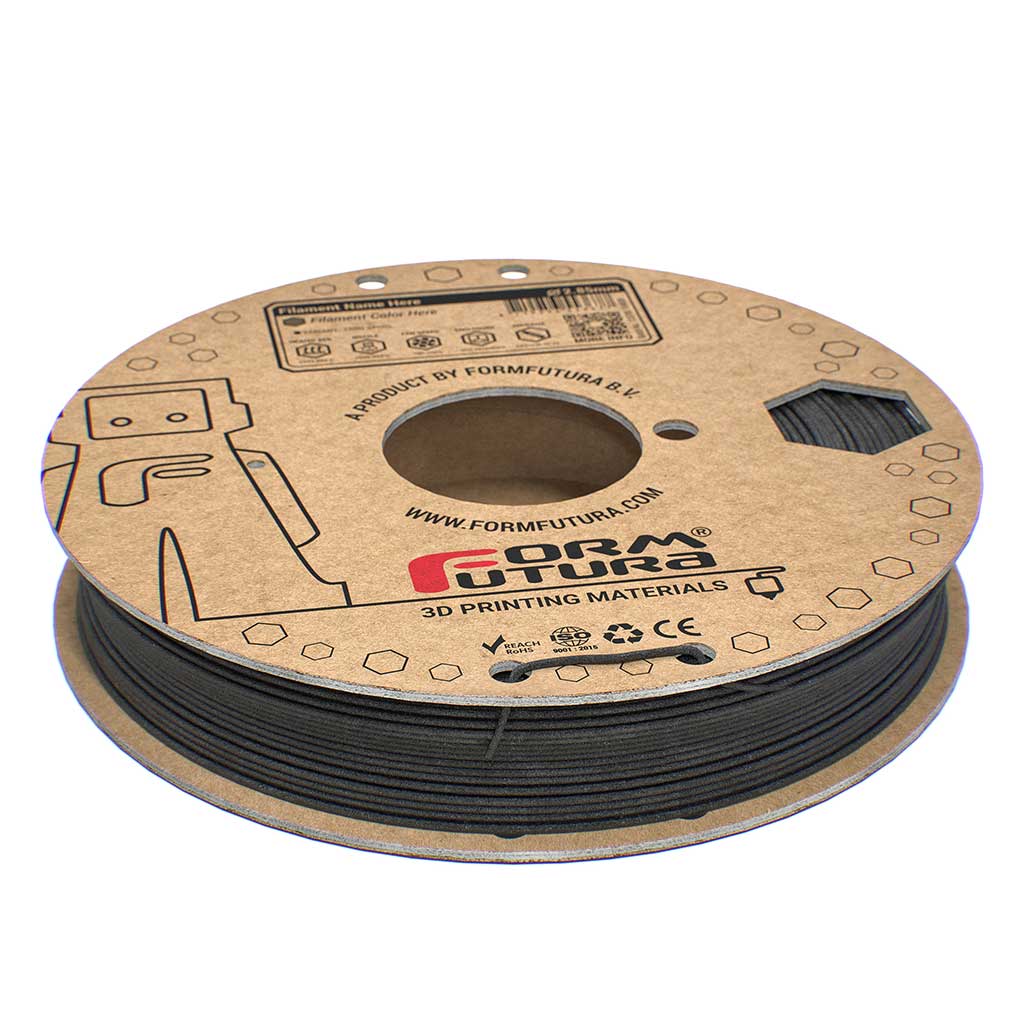

LUVOCOM 3F PAHT CF 9742
High performance Nylon based filament reinforced with carbon fiber, offering exceptional lightweight strength, heat resistance, and matte finish.
Name :
[PHC9-175BLCK-00500] LUVOCOM 3F PAHT CF 9742 (1.75mm, 500 gram)SKU :
PHC9-175BLCK-00500EAN :
8720629068206LUVOCOM 3F PAHT CF 9742 is a reinforced nylon based filament designed for demanding industrial use. By combining high temperature Nylon (PAHT) with carbon fiber, this filament delivers an ideal balance of mechanical strength, thermal resistance, and printability.
Unlike standard Nylon or Nylon CF blends, PAHT CF is less hygroscopic, meaning it absorbs less moisture and is more dimensionally stable. The carbon fiber reinforcement adds rigidity, stiffness, and improved heat deflection, making it suitable for functional parts, automotive components, tooling, and structural prototypes.
Key features
- Lightweight
- Wear resistance
- Matte finish
- High Strength & Stiffness.
- Dimensional stability
Suitable Applications
- Gears
- Drones
- Brackets
- Mechanical prototypes
- Lightweight robotics
General printing guidelines *
| Nozzle size: ≥ 0.4mm | Layer height: ≥ 0.20mm | Experience level: Expert |
| Print temp: ± 260 – 290°C | Fan speed: 0 – 25% | Drying: 8h @100°C (max) |
| Heat bed: ± 60 – 80° C | Enclosure needed: Required |
*) Above displayed settings are meant as guidance to find your optimal print settings. These ranges in settings should work for most printers, but please do feel free to experiment outside these parameters if you think it is suitable for your printer. There are a lot of different type of printers, hot-ends and printer offset that it is extremely difficult to give an overall one-size-fits-all setting.
Compliance *
This filament is compliant to below-listed directives and regulations.
- RoHS directive 2011/65/EC
- REACH directive 1907/2006/EC
*) This declaration of conformity to directives and regulations is prepared according to our present standard of knowledge and may be amended if new cognitions are available and applies only for the above-described products.
Product export information
| HS Code: 39169090 | Description: Monofilament for 3D printing | Country of origin: European Union |
